598411 Lucas Brake Chamber

Description

598411 Lucas Chamber

598411 Lucas Chamber Hydraulic Cylinder, Parking Brake Cylinder. MAXI Lucas Chamber.
**A Core Surcharge of $50.00 is in Retail price, this core will be refunded upon receipt of core returned**

Fits Bale Wagon models: New Holland Bale Wagon 1095, New Holland Bale Wagon 1085, New Holland Bale Wagon 1089 ASN, New Holland Bale Wagon 1078, New Holland Bale Wagon 1079.

LUCAS CHAMBER PART DESCRIPTION

• Remanufactured 598411 Lucas Chamber Hydraulic Spring-Set Parking Brake
• All steel housing provide strength, durability and extra corrosion resistance.
• Aluminum piston and nylon bearings provide maximum guidance stability that diffuses lateral and twisting motion.
• Steel alloy springs are epoxy coated to protect against rust and corrosion.
• Deeper spring cavities and optional spring force outputs offer uniform output and longer service life.
• The Hydraulic Spring-Set Parking Brake release mechanisms are housed inside the unit making them readily available for use.
• Stamped steel piston with 360° heavy duty plastic bushing and o-ring seal.
• Chrome plated piston rod.
• Includes Fluid Inlet.
  • Notes
    Single Pack – 1 per Box.
    Maximum Hydraulic Pressure 125 psi.
    Hydraulic Unit compatible with ATF; DO NOT USE BRAKE FLUID

Removing and Installing:
1. I have added Page 1&2 of the Ford Manual for instructions, look in the photos section,
2. I have added some of the best videos I can find.
3. IMPORTANT! The springs is under tremendous pressure, if you have any question of your ability or don’t have the proper tools PLEASE request or take to a professional for help or repair. You only have one life, protect it!

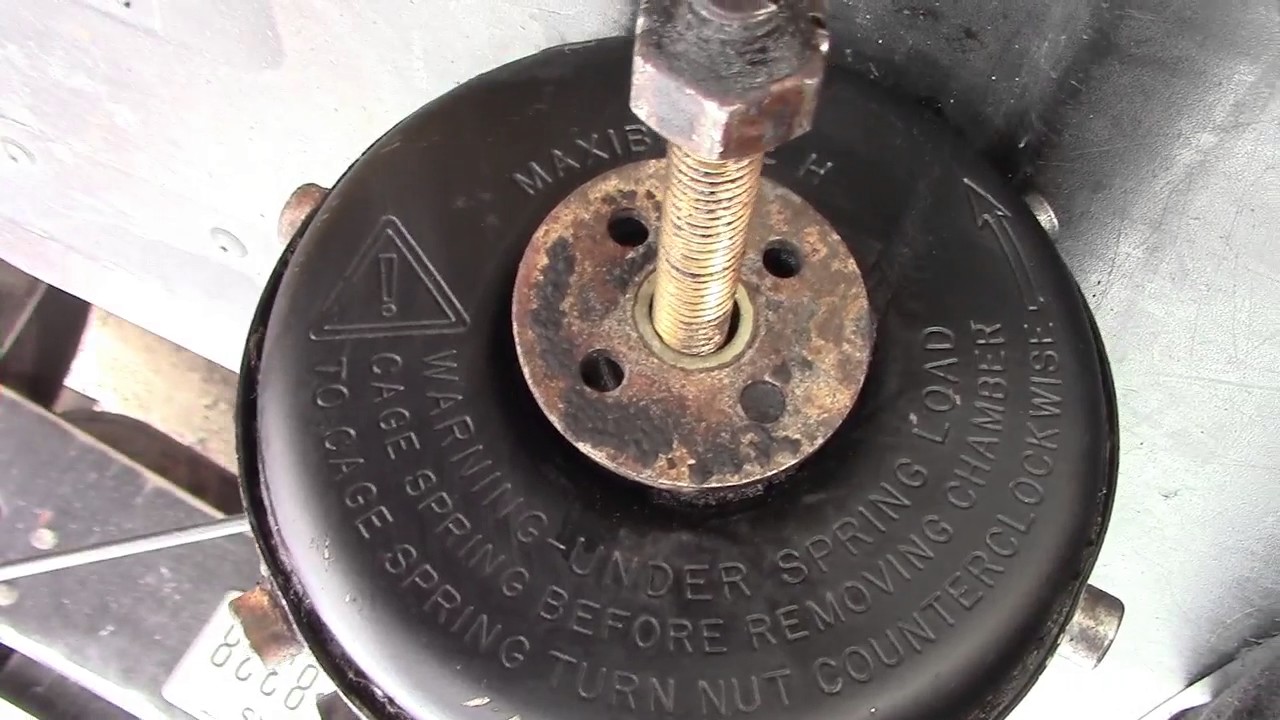

This is the closest R&R Video I was able to find, if there is one for a New Holland 1085/1095 I have not found it.

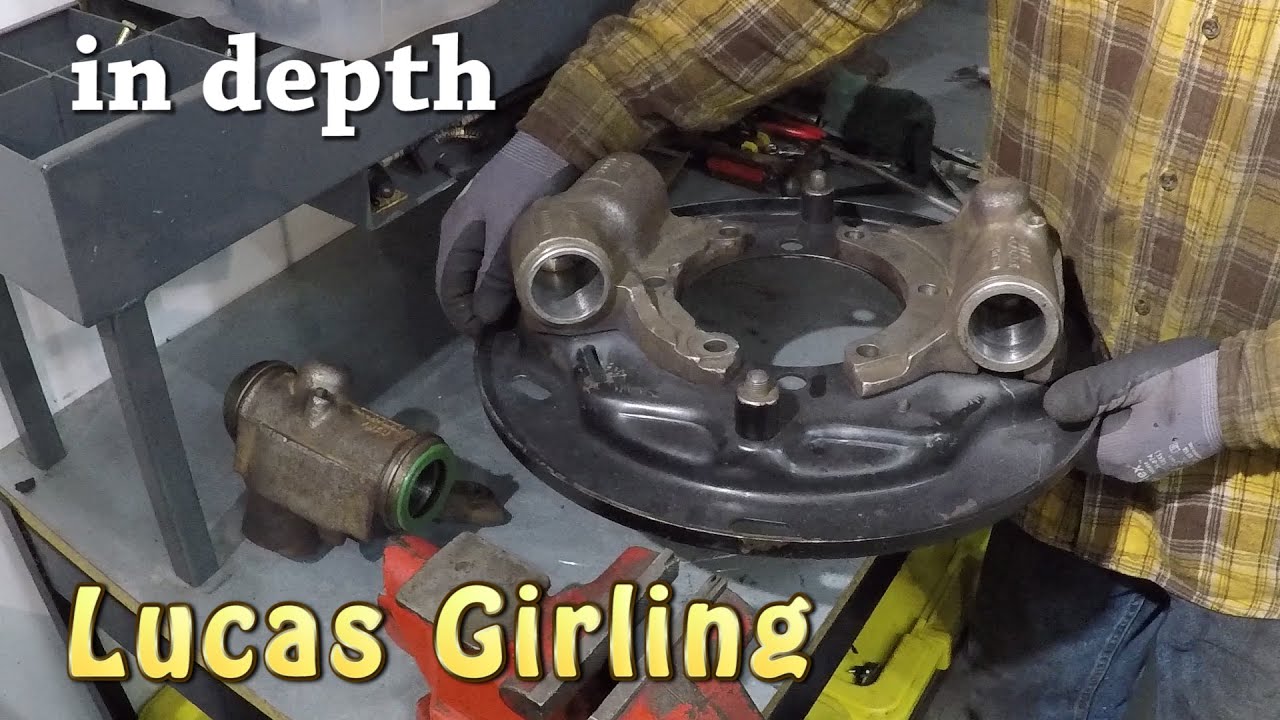

Here is Video of a complete rebuild of backing plate NOT including E-Brake

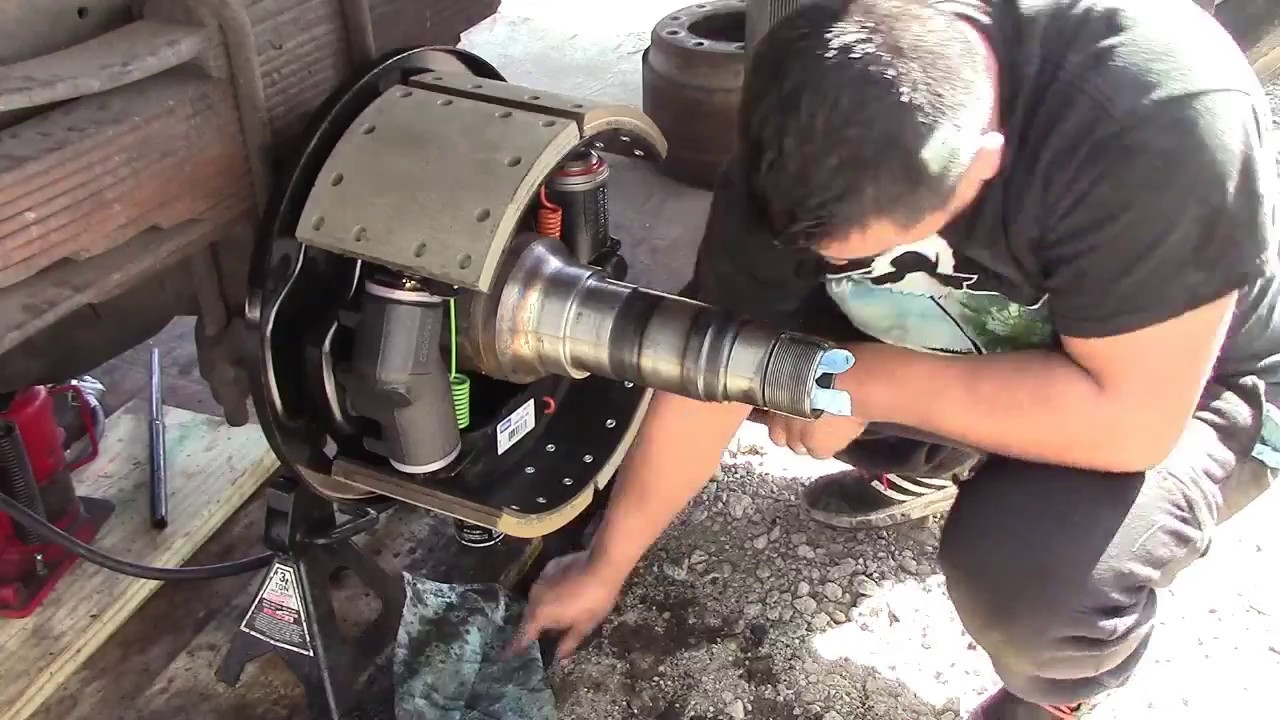

And yet another rebuild of the brake system. This one includers bleeding the system. Keep in mind this system was made in Mexico.
