Description

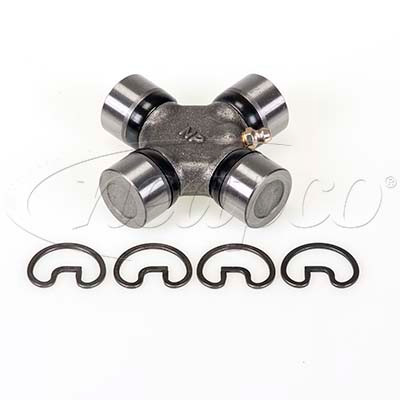

Cross Kit, Hydraulic Pump Driveline

Replaces OEM Numbers:

• 84512487 5153X 86619417 84355356 256198A1
• 121406R92   12146R92   135700421011   1530942C1   194274A1   235981A1   256198A1   645573R91   83934724   83957857   84355356   85813628
• 87023246   87314012   87517359   87664859   87760752   87763775   9923550   9959678   9961590   9961641   9961774   9962244   9966603   CAR041121   CAR116859   D26204   K965331   V20744   V56564

Fits Models:

• 1089 – SELF PROPELLED BALE WAGON(12/94 – 11/03)
• 1095 – SELF PROPELLED BALE WAGON(12/94 – 11/03)
• BW28 – SELF-PROPELLED BALE WAGON(11/03 – 05/07)
• BW38 – SELF-PROPELLED BALE WAGON(11/03 – 05/07)
• Allis-Chalmers TRACTOR: 5050 (FWA)
• Allis-Chalmers TRACTOR: 6060 (FWA)
• Allis-Chalmers TRACTOR: 6070 (FWA)
• Allis-Chalmers TRACTOR: 6080 (FWA)
• Fiat TRACTOR: F100DT (MFWD)
• Fiat TRACTOR: F110DT (MFWD)
• Fiat TRACTOR: F115DT (MFWD)
• Fiat TRACTOR: 100-90DT (MFWD)
• Fiat TRACTOR: 110-90DT (MFWD)
• Fiat TRACTOR: 45-76V
• Fiat TRACTOR: 50-86VDT
• Fiat TRACTOR: 60-86SVDT (MFWD)
• Fiat TRACTOR: 60-86VDT (MFWD)
• Fiat TRACTOR: 70-66DT (MFWD)
• Fiat TRACTOR: 70-66SDT (MFWD)
• Fiat TRACTOR: 70-88DT (MFWD)
• Fiat TRACTOR: 70-90DT (MFWD)
• Fiat TRACTOR: 72-93DT (MFWD)
• Fiat TRACTOR: 72-94DT (MFWD)
• Fiat TRACTOR: 80-66

Specifications:

• Type: Outside Snap Ring Style (OSR)
• OEM Series: Spicer 1310 / SPL22

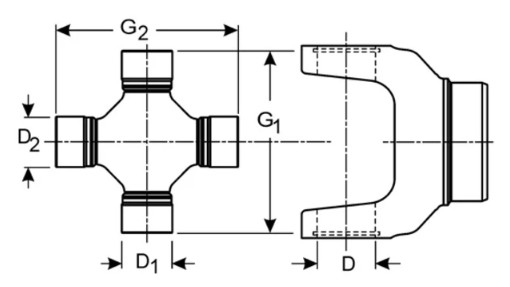

• Bearing Cap Diameter: 1.062 Inch (26.975 mm) (D1): 1.062 Inch (26.975 mm) (D2)
• Lock Up / Length: *Snap Ring to Snap Ring 3.219 Inch (81.763 mm) (G1): 3.219 Inch (81.763 mm) (G2)
• Grease Type: Greaseable
• Snap Rings Included: Yes
• Material: Steel & Rubber
