9802720 NH Bale Wagon Starter

Description

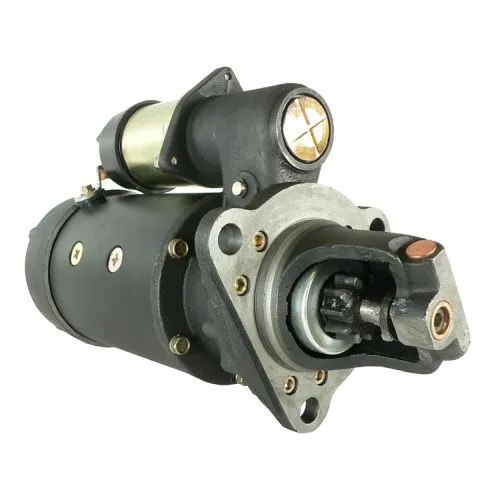

9802720 Starter Delco Style 37MT 12 Volt

Starter Delco Style 37MT 12 Volt 10 tooth Direct Drive, New
Replaces OEM# 9802720, 50726, TS1561
Also Replaces: AC DELCO TOOLS323-840, CUMMINS 3604673RX, DELCO 10461006, 10461011, 10461058, 1990347, 1993767, 1993854, 1993981, 323-840, 323-845, FORD E9HT11001BA, E9HT-11001-BA, E9HZ11002A, E9HZ-11002-A, SA764, SA764A, FORD/NEW HOLLAND 9802720, JANNCO 410-12150R, LESTER 6298, 6398, 6412, LUCAS ELECTRIC LRS01572

Fits:
New Holland Bale Wagon 1095, ASN 616100, Also used in models: 1085, 1089, 1078, 1079, TR98, TX36, TR96, TR88, TR87, TR86, TR97, TR99, TR89
Ford 6.6L(401) V8 Dsl 1982-1988, Ford 6.6L(401) V8 Dsl 1989-1995

Heavy duty positive engagement solution for 37MT starters, Eliminates the milling and stop ring & collar failure common on the 37MT design, 41MT positive engagement drive, 41MT armature with heat treated shaft and welded steel-core riserless commutator, 41MT solenoid, 100% tested for coil strength, voltage drop across contacts and ‘reserve burnoff’ on the contacts, Varnish dipped field coils, Ductile iron D.E. housing, Painted gloss black with zinc plated hardware, 100% computerized load tested.

Specifications:
LESTER 6298, 6398, 6412
FAMILY Delco 37MT
VOLT 12
POWER 4.600 kw
HP 6.169
CONDITION New
QUALITY TYPE Standard
ROTATION DIRECTION Clockwise
ELECTRIC STARTER TYPE Direct Drive (DD)
NUMBER OF TEETH 10
GEAR OD 1.571″
GEAR OD 39.900mm
SOLENOID POSITION 308
LENGTH 13.449″
LENGTH 341.600 mm
MOUNT HOLE ID 1 0.660″
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE ID 2 0.660″
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE 3 TYPE Unthreaded
REGISTRY OD 3.622″
REGISTRY OD 92mm
WET CLUTCH SEAL TRUE
WARRANTY 1 Year
SOLENOID POSITION 308 °
