REMAN Steering Gear Box TAS40 [New Holland 9848960]

$1,999.00

Description

REMAN Power Steering Gear Box TAS40

New Holland Bale Wagons generally have Cast#TAS402299, check your Cast# and Stamp/Model Number to be sure of the steering box to order. Choose your box from the drop-down.

Gear Part Number: The steering gear part number is stenciled on a machined surface opposite the input shaft of every TAS gear. The number cast into the side of the housing IS NOT the part number. [Must Have Bale Wagon Model Number, Serial Number and Gearbox Cast# and Stamp / Model Number before ordering.]

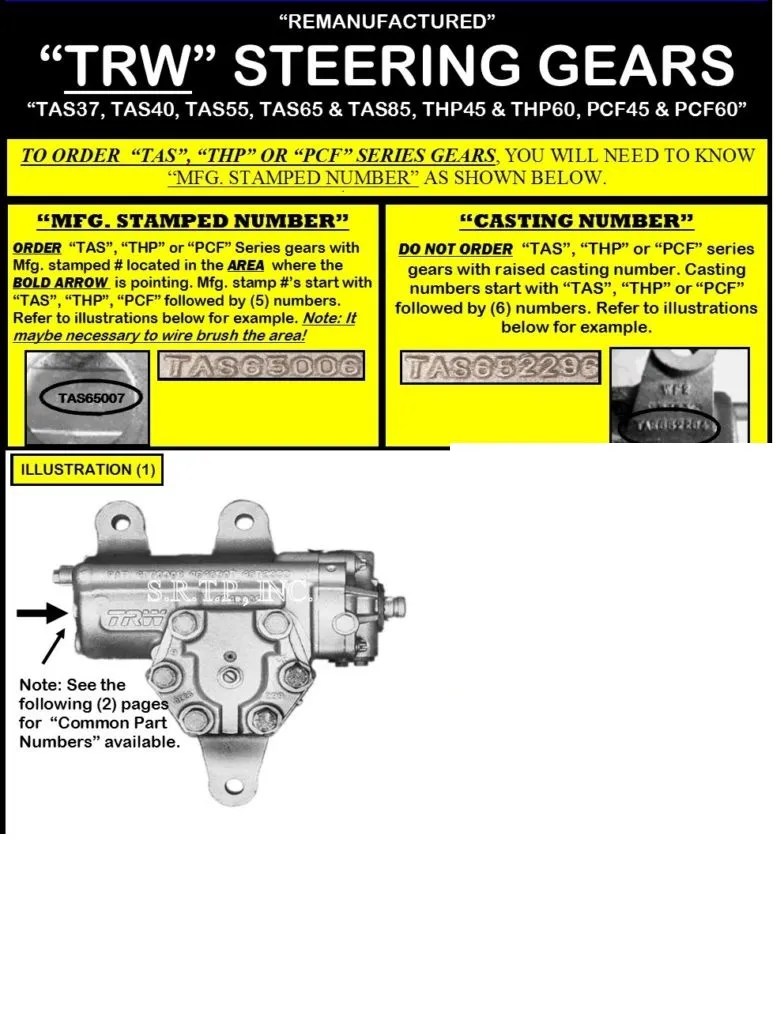

See Identification Sheet Attached
Product replaces: 597525, 598441, 9849123, 9849124, 9848960, 9848960R

Procedure: You will send us your TAS40 Steering Gear and we will rebuild and return. Standard turnaround is 2-4 day not including shipping times.
Place correct steering gear by Stamp/Model number into cart and choose return shipping method. We will send the shop address and your Service Order. DO NOT SEND without a Service Order number, thee shop mut know what is coming for work. We are not responsible for lost gears that are sent without Service Order number.

Fit models:
New Holland Bale Wagons using TRW TAS40 Steering Gear, see Identification
1068 – BALE WAGON(07/77 – 07/88) ASN 513385, 1069 – BALE WAGON(07/77 – 07/88) ASN 3076, 1075 – BALE WAGON(07/77 – 07/88) ASN 437144, 1078 – BALE WAGON(07/88 – 11/94), 1079 – BALE WAGON(07/88 – 01/94), 1085 – BALE WAGON(07/88 – 11/94), 1089 – SELF PROPELLED BALE WAGON(12/94 – 11/03), 1095 – SELF PROPELLED BALE WAGON(12/94 – 11/03), BW28 – SELF-PROPELLED BALE WAGON(11/03 – 05/07), BW38 – SELF-PROPELLED BALE WAGON(11/03 – 05/07), H9870 – SELF-PROPELLED BALE WAGON(06/07 – 12/14), H9880 – SELF-PROPELLED BALE WAGON(06/07 – 09/16), STACKCRUISER 102 – BALE WAGON(07/17 – ), STACKCRUISER 103 – BALE WAGON(07/17 – ), STACKCRUISER 105 – BALE WAGON(07/17 – 12/18)

Additional information

Weight 69.5 lbs
Dimensions 24 × 18 × 18 in
Model Number

, , , ,
