Description

12 Volt DC 10 GPM DA Solenoid Valve Eaton-Vickers DG4V-3-2C-M-U-G7-60

Description: This page provides details on the 86529111 Control Valve Less Solenoid Coils C2. 12 VOLT DC HYDRAULIC SOLENOID VALVE

Replaces OEM Numbers:

• 86513765, 86598685, 86598687, 86598689, 86542383, 86598687, 91726427, 86513763, 86529111

Fits Models:

• 1089 – SELF PROPELLED BALE WAGON(12/94 – 11/03)
• 1095 – SELF PROPELLED BALE WAGON(12/94 – 11/03)
• BW28 – SELF-PROPELLED BALE WAGON(11/03 – 05/07)
• BW38 – SELF-PROPELLED BALE WAGON(11/03 – 05/07)
• H9870 – SELF-PROPELLED BALE WAGON(06/07 – 12/14)
• H9880 – SELF-PROPELLED BALE WAGON(06/07 – 09/16)
• STACKCRUISER 102 – BALE WAGON(07/17 – )
• STACKCRUISER 103 – BALE WAGON(07/17 – )
• STACKCRUISER 105 – BALE WAGON(07/17 – 12/18)

Specifications:

• Brand Eaton-Vickers
• Model Number DG4V-3-2C-M-U-G7-60
• Closed center spool (Work ports blocked in neutral)
• ISO 4401-3 (#10-24)
• Voltage 12 Volt DC
• Amperage 3.5 Amps
• Flow Rate 10.5 GPM max
• Pressure 3,000 PSI max
• Subplate Mounting Type D03
• Size 8.66″ x 2.1″ x 1.88″
• Shpg. 6 lbs.

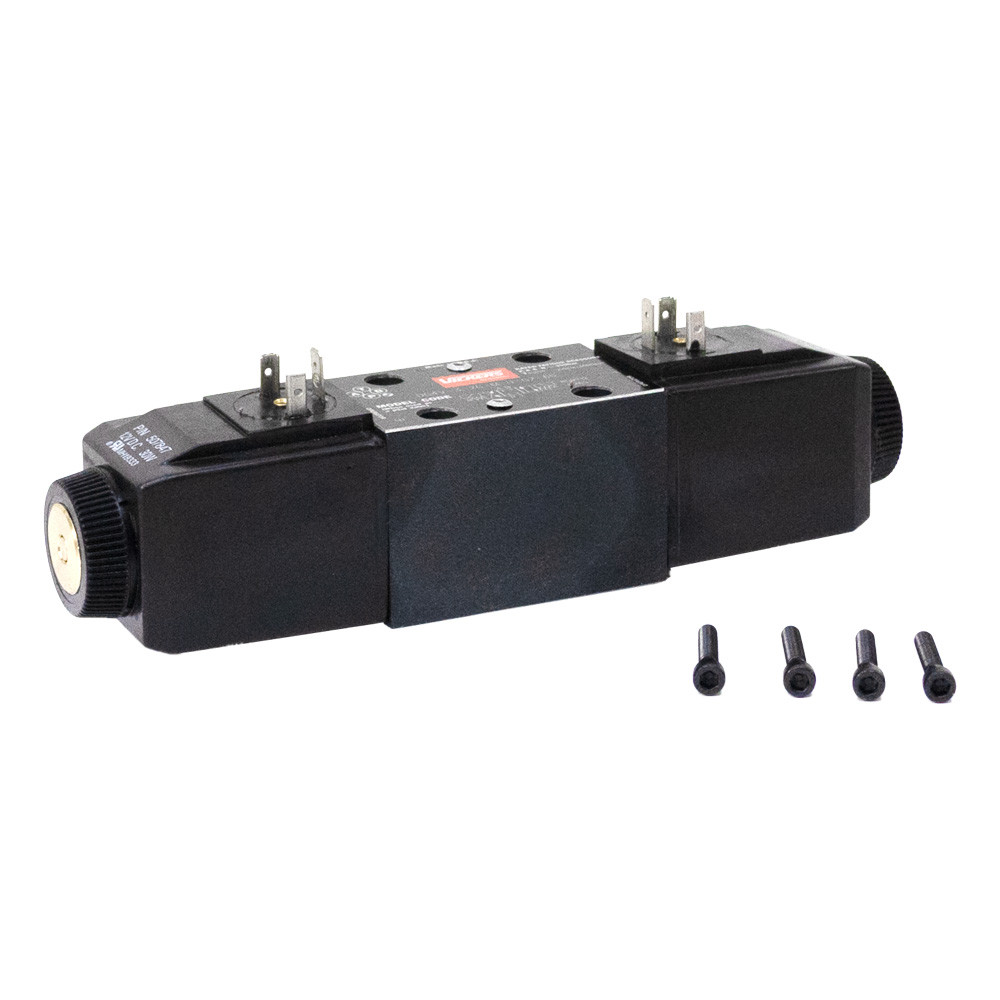

• Brand new, Eaton-Vickers DG4V-3 series, double-solenoid control valve. Spring centering spool. Manual override on solenoids. Valve ships with four cap-screws (#10-24) for mounting. Subplate mounting requires D03 subplate (Sold Separately) for port connections. Use with two DIN 43650 or Hirschmann connectors Item Number 500318 (Sold Separately) for wiring.
