Description

Hydro-Max Hydraulic Brake Booster

CNH’s Supplier discontinued Booster 9848423 Hydro-Max Brake Booster and replaced it with 86559597. Some of the serviceable components have been affected by this change. It’s important to ensure you are purchasing the correct New Holland Bale Wagon Hydro-Max Brake Booster for your equipment.

Description:

• 9848423R [2771558L/M] is listed as a REMAN Hydromax Booster with center mount casting and casting number 2771371 or 2771293, This will Substitute to the 86559597 Hydromax.

• 86559597R [2772181L/M] is listed as a REMAN Hydromax with offset mount casting and casting number 2772114, Check your casting number!! [Includes $150.00 Core Charge.]

• 86559597 [2772819] is a NEW in Stock Bendix cylinder hydraulic power brake booster with offset mount casting and casting number 2772114, Check your casting number!! In fact, New Holland Bale Wagon Hydro-Max Brake Booster applications require precise casting and model confirmation.

Replaces OEM Numbers:

• 86559597, 86559515

Fits Models:

• 1078 – BALE WAGON(07/88 – 11/94)
• 1079 – BALE WAGON(07/88 – 01/94)
• 1085 – BALE WAGON(07/88 – 11/94)
• 1089 – SELF PROPELLED BALE WAGON(12/94 – 11/03)
• 1095 – SELF PROPELLED BALE WAGON(12/94 – 11/03)
• BW28 – SELF-PROPELLED BALE WAGON(11/03 – 05/07)
• BW38 – SELF-PROPELLED BALE WAGON(11/03 – 05/07)
• H9870 – SELF-PROPELLED BALE WAGON(06/07 – 12/14)
• H9880 – SELF-PROPELLED BALE WAGON(06/07 – 09/16)
• STACKCRUISER 102 – BALE WAGON(07/17 – )
• STACKCRUISER 103 – BALE WAGON(07/17 – )
• STACKCRUISER 105 – BALE WAGON(07/17 – 12/18)

Specifications:

• The 9848423R Hydro Max Brake Booster Reman model is available only if we have cores. Please call before ordering.
• If we have a core and ship the rebuilt component to you there will be an add of a CORE CHARGE of $175.00, REFUNDABLE UPON RECEIPT OF OLD PART.
• If we don’t have a core you will be required to send your core for rebuilding, NO CORE CHARGE added.
• For a complete troubleshooting guide, download here.

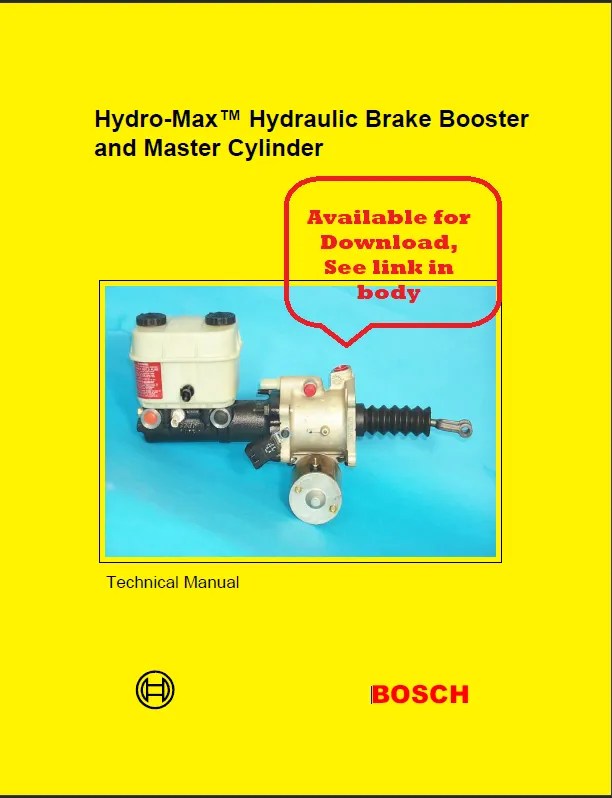

• For a complete Service Manual with troubleshooting guide, download here.
